520963-2
Manufacturer:
TE Connectivity
Mfr.Part #:
520963-2
Datasheet:
Description:

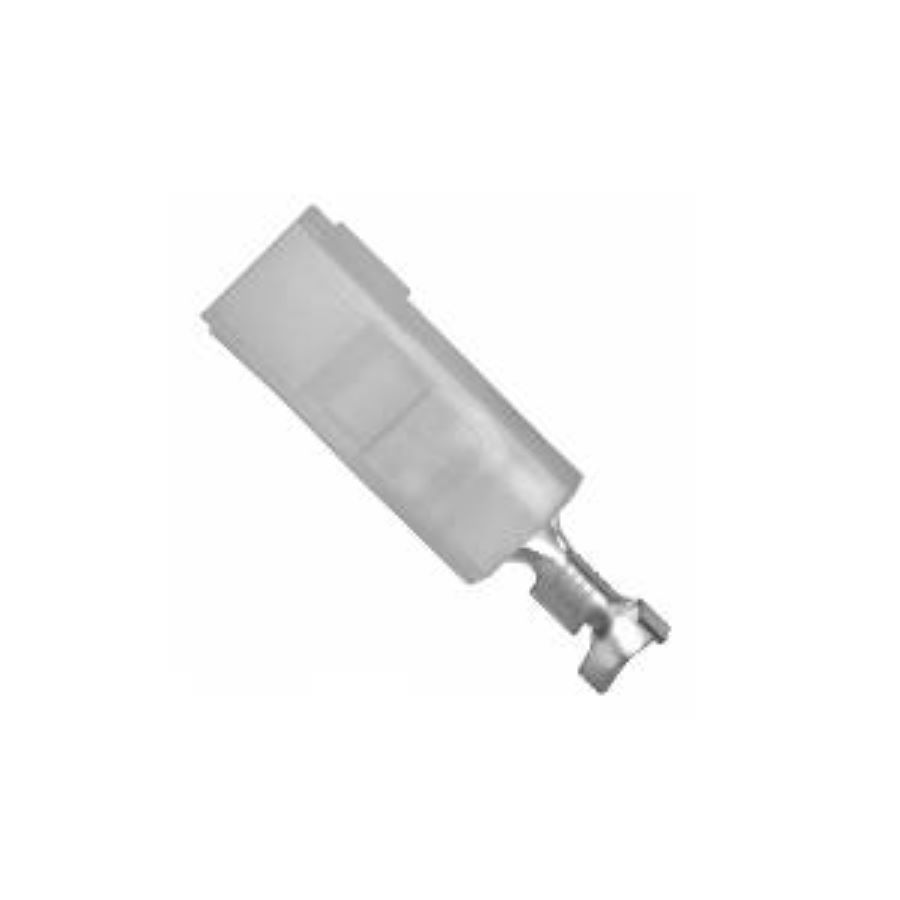

Terminals Free Hanging 18 AWG Female
| Parameter | Value |
|---|---|
| Length | 34.7 mm |
| Termination | Receptacle |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Material | Brass |
| Packaging | Reel |
| Depth | 5.97 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | Receptacle |
| Flammability Rating | UL94 V-2 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Natural |
| Gender | Female |
| Body Material | Brass |
| Tab Width | 6.35 mm |
| Terminal Material | Brass |
| Wire/Cable Gauge | 18 AWG |
| Insulation | Insulated |
| Number of Positions | 1 |
| Insulation Material | Nylon |
| Housing Material | Nylon |
| Wire/Cable Type | Discrete |
| Wire Gauge (Max) | 14 AWG |
| Wire Gauge (Min) | 18 AWG |
| Plating | Tin |
| Termination Style | Crimp |
| Insulation Diameter | 4.318 mm |
| Body Plating | Tin |
| Insulated Wire Support | Yes |
| Mating Tab Width | 6.35 mm |
| Tab Length | |
| Tab Thickness | 812.8 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
Stock: 10522
Distributors
pcbx
pcbxUnit Price$0.17526
Ext.Price$0.17526
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.17526 | $0.17526 |
| 10 | $0.14534 | $1.45340 |
| 50 | $0.13330 | $6.66500 |
| 100 | $0.12226 | $12.22600 |
| 500 | $0.11106 | $55.53000 |
| 1000 | $0.10088 | $100.88000 |
| 3000 | $0.09061 | $271.83000 |
| 5000 | $0.08139 | $406.95000 |
